Bauer Massenza M I 6 Water drill

Construction Drilling machine
Year 2005
Id BG02236
Fuel Diesel
Operating hours 3.587 h
Power 115 kW (156 PK)
Weight 9.900 kg
General state Good
Technical state Good
Optical state Good
BG0236
Type: Drilling rig
Brand: MASSENZA
Model: MI.6
Engine: VM - 6 cylinder, liquid-cooled, 156 HP
Hours on meter: 3852
Manufactured: 2005
Power 156 HP
Dimensions L/H/W 7.00/2.80/2.40

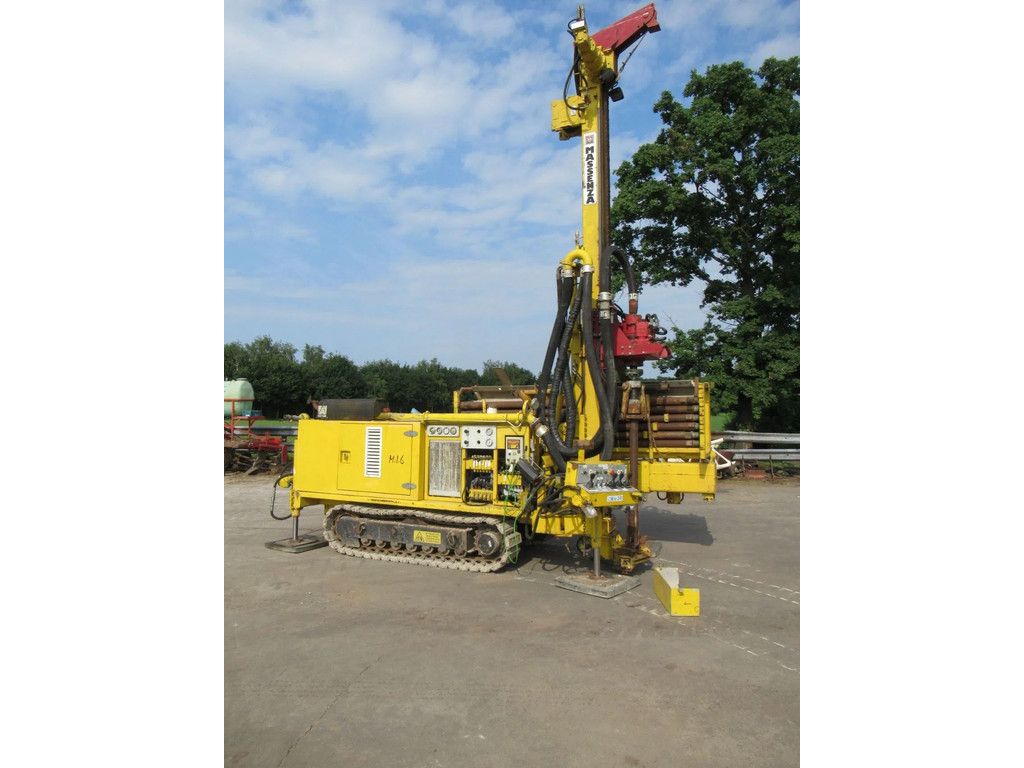

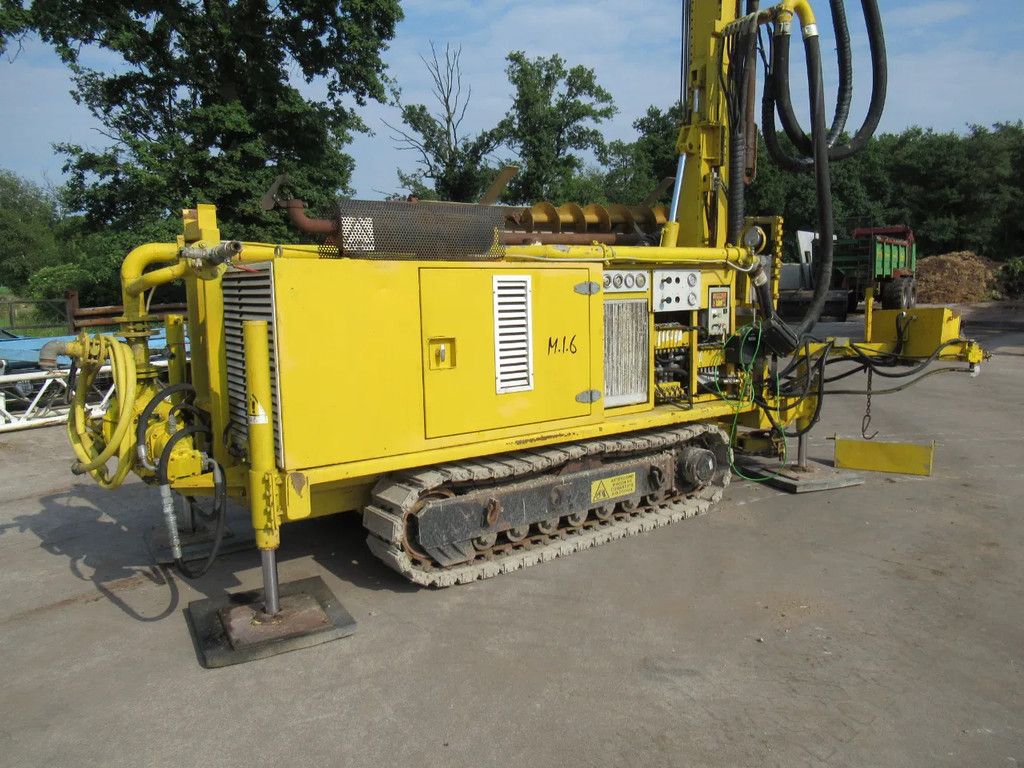

MASSENZA HYDRAULIC DRILLING RIG MODEL MI6 mounted on TRACKS
Used for water well research and geothermal applications.

PARAMETERS:
Strokes of rotary head/ feed length: 3760 mm
Engine: VM - 6 cylinder, liquid-cooled, 156 HP

PULL-DOWN SYSTEM:
Hydraulically powered device by means of geared motor and heavy-duty high resistance chain. Hydraulically adjustable feed system of pull-down and hold back pressure on drill string.
Pull-up max 56 kN (5,6 Tons) (12.346 lbs)
Pull-down max 56 kN (5,6 Tons) (12.346 lbs)
Chain strength in tension: 20.183 kg (44.496 lbs)
Up-down adjustable handling fast feed rate from 0 to 35 m/min.

SERVICE WINCH:
Complete with 30 m of steel cable Ø 10 mm.
Direct line pull 22 kN (4946 lbf)

MASSENZA ROTARY HEAD model TM6.1:
Internal diameter 50 mm (2").
Torque 6000 Nm - Speed 76 Rpm
Torque 3000 Nm - Speed 152 Rpm

MUD PUMP CAPRARI TWO STAGE ROTOR:
Output flow max 1500 l/min
Pressure max 16 bar

STORAGE:
For drill rods and casing pipes

Rig is controlled by hydraulic levers !!!
Weight: 9900 kg
